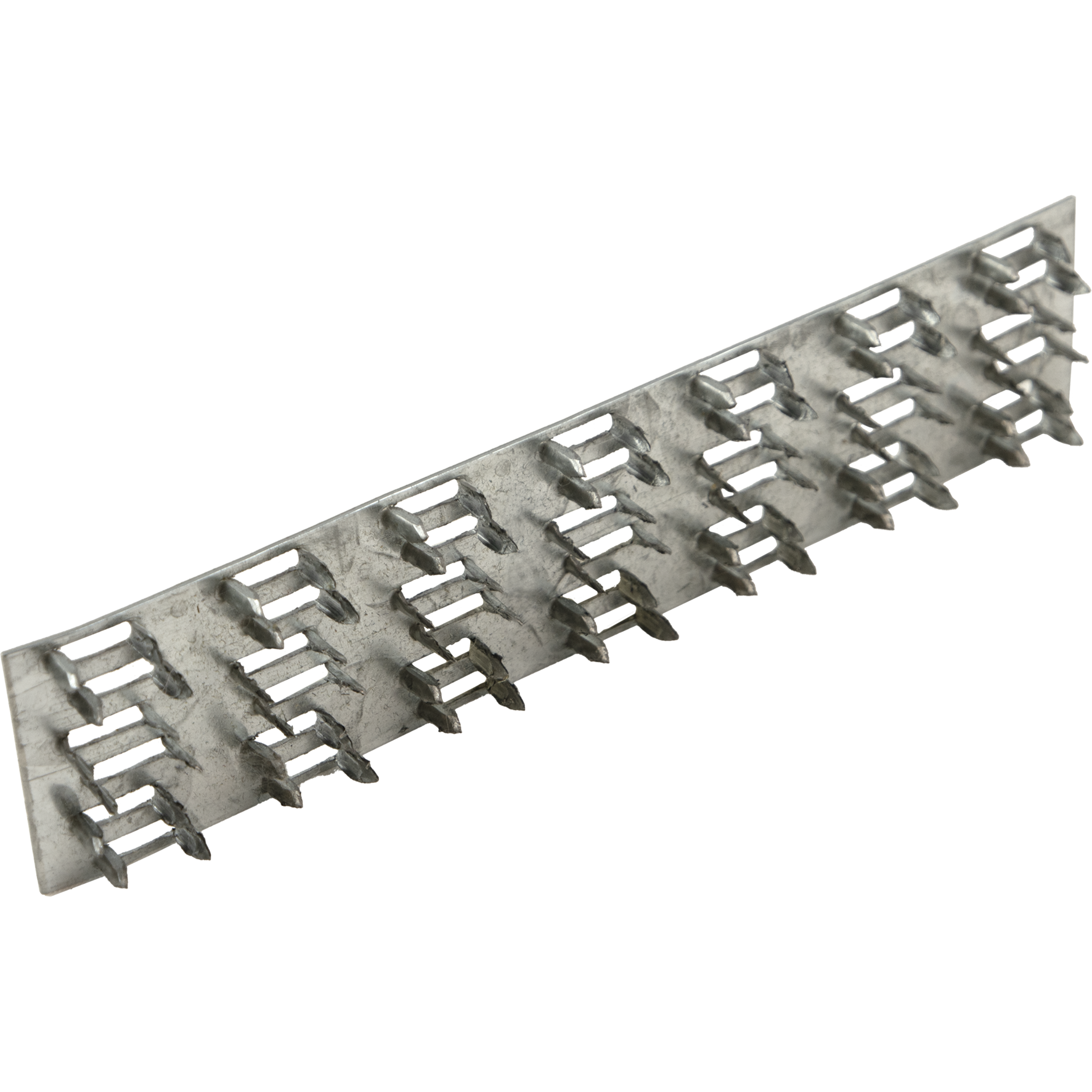

Timber connector

Name: Timber connector
SKU: 072888

Thickness

Height

Diameter

Surface treatment

SV-2

TV-3

Details & dimensions

Article number072888

EAN code8714318142452

EAN code8714318142445

Packaging250 per box

Length390 mm

Width290 mm

Height260 mm

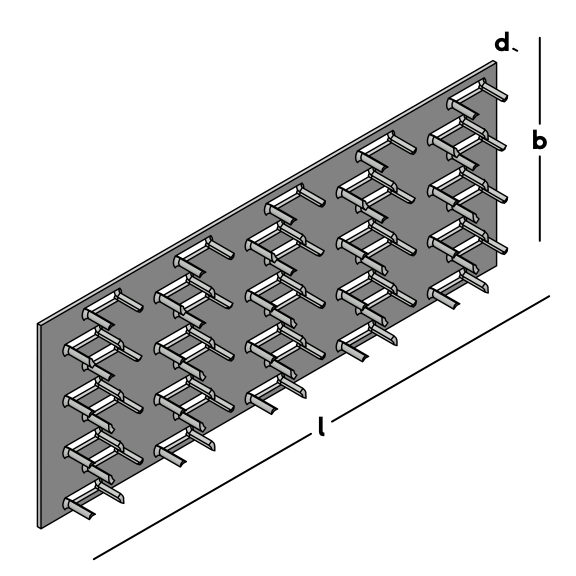

Length (l)125 mm

Width (b)48 mm

Thickness (d)1 mm

MaterialSteel

Steel QualityDX51

Surface treatment SV-2

Drawings and models in 2D and 3D

Name	Article number	Packaging	Length	Width	Thickness	Height	Diameter	Hole pattern	Material	Steel Quality	Surface treatment
Single sided timber connector	07294	150 per box	-	-	1,2 mm	16 mm	62 mm	1/12,5	Steel	DX51	TV-3
Single sided timber connector	07291	300 per box	-	-	1 mm	12 mm	50 mm	1/11	Steel	DX51	TV-3
Double sided timber connector	07286	25 per box	-	-	1,5 mm	30 mm	117 mm	1/48	Steel	DX51	TV-3
Double sided timber connector	07285	40 per box	-	-	1,35 mm	24 mm	95 mm	1/33	Steel	DX51	TV-3
Double sided timber connector	07284	100 per box	-	-	1,25 mm	19,5 mm	75 mm	1/26	Steel	DX51	SV
Double sided timber connector	07283	100 per box	-	-	1,3 mm	16 mm	62 mm	1/21	Steel	DX51	SV
Double sided timber connector	07282	200 per box	-	-	1 mm	12 mm	50 mm	1/17	Steel	DX51	SV
Timber connector	072888	250 per box	125 mm	48 mm	1 mm	-	-	-	Steel	DX51	SV-2
