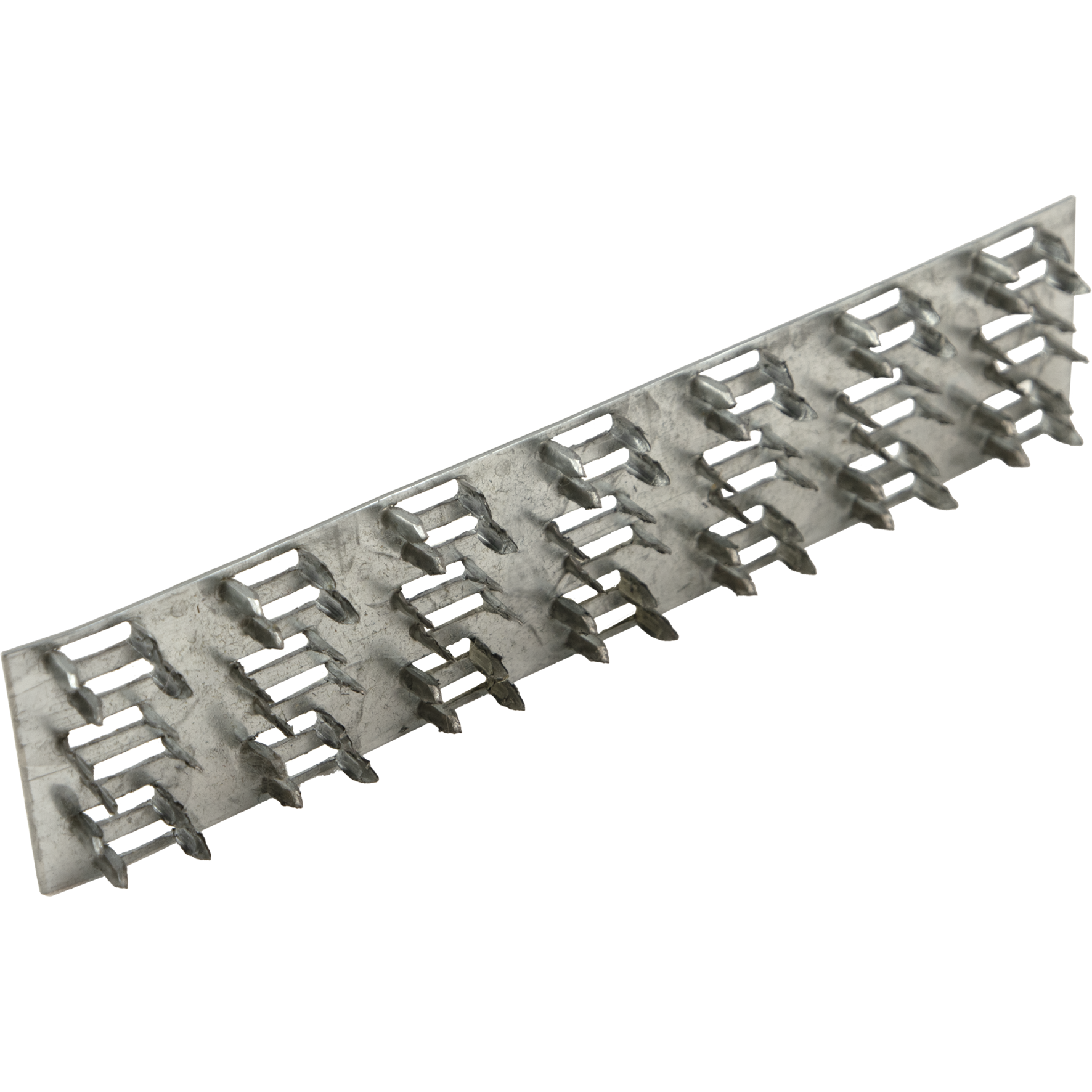

Timber connector

Name: Timber connector
SKU: 072887

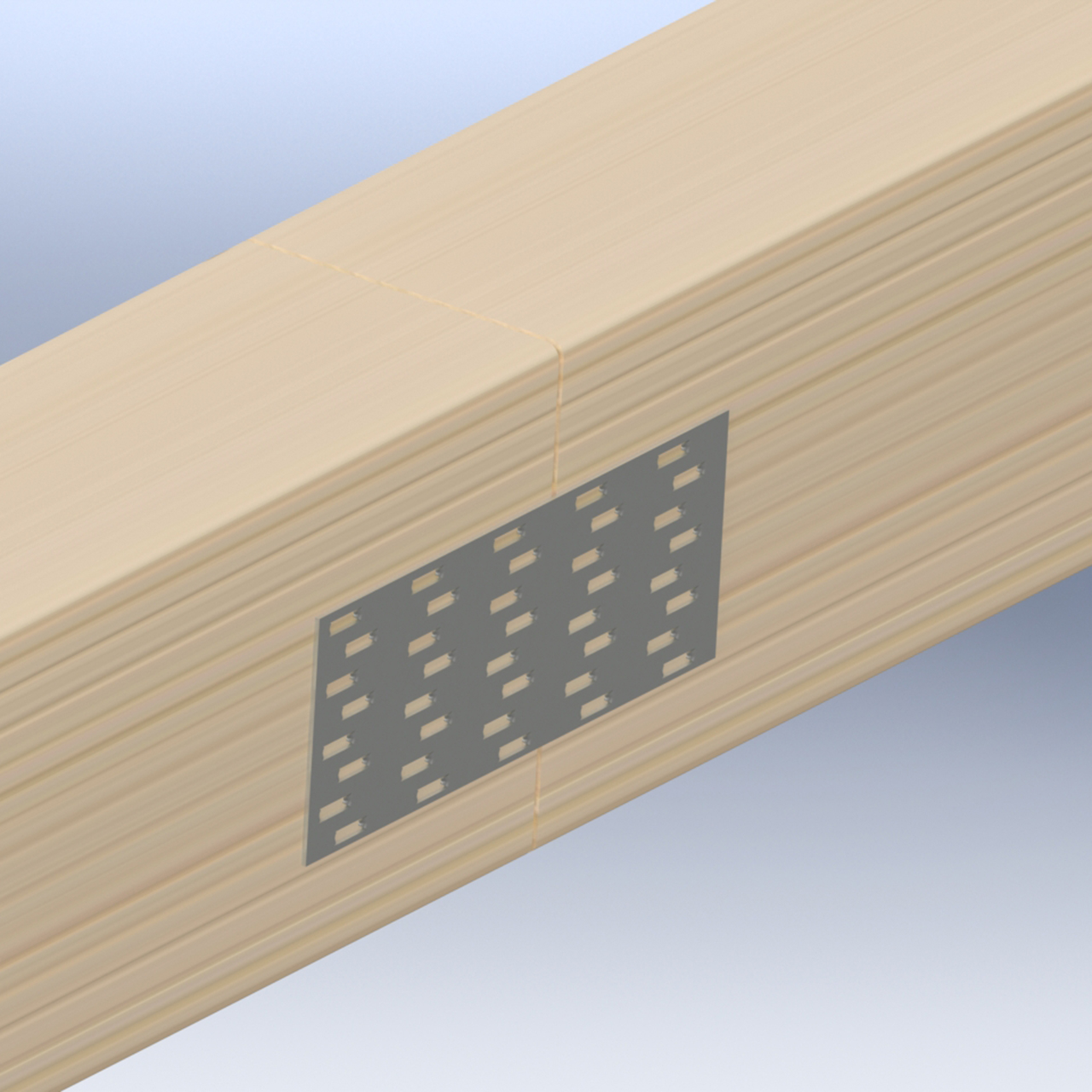

The rectangular coupling plate has one converted side and a regular pattern of reinforcing grooves and nail holes. Suitable for nailing thicker or wider wood parts together flush.

Length

100 mm

125 mm

175 mm

Width

24 mm

35 mm

48 mm

Thickness

Height

Diameter

Surface treatment

Details & dimensions

Article

Article number072887

EAN code8714318142438

Packaging

EAN code8714318142421

Packaging300 per box

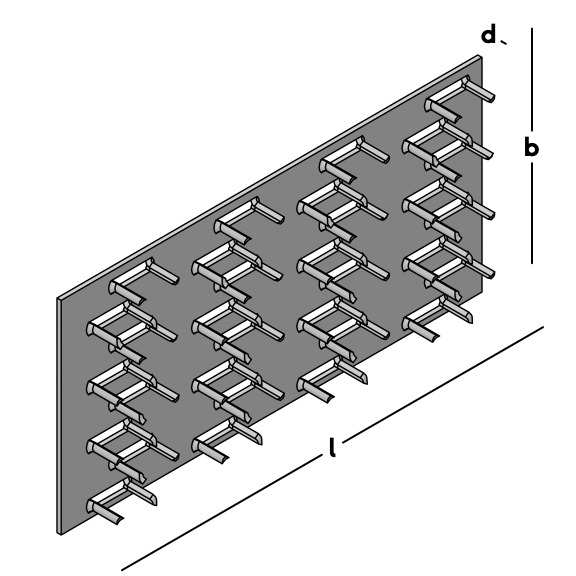

Dimensions

Timber connector

Length (l)100 mm

Width (b)48 mm

Thickness (d)1 mm

MaterialSteel

Steel QualityDX51

Surface treatment SV-2

Downloads

Drawings and models in 2D and 3D

Name	Article number	Packaging	Length	Width	Thickness	Height	Diameter	Wire	Hole pattern	Length pens	Material	Steel Quality	Surface treatment
Single sided timber connector	07294	150 per box	-	-	1,2 mm	16 mm	62 mm	M16	1/12,5	-	Steel	DX51	TV-3
Single sided timber connector	07291	300 per box	-	-	1 mm	12 mm	50 mm	M10	1/11	-	Steel	DX51	TV-3
Double sided timber connector	07286	25 per box	-	-	1,5 mm	30 mm	117 mm	-	1/48	-	Steel	DX51	TV-3
Double sided timber connector	07285	40 per box	-	-	1,35 mm	24 mm	95 mm	-	1/33	-	Steel	DX51	TV-3
Double sided timber connector	07284	100 per box	-	-	1,25 mm	19,5 mm	75 mm	-	1/26	-	Steel	DX51	SV
Double sided timber connector	07283	100 per box	-	-	1,3 mm	16 mm	62 mm	-	1/21	-	Steel	DX51	SV
Double sided timber connector	07282	200 per box	-	-	1 mm	12 mm	50 mm	-	1/17	-	Steel	DX51	SV
Timber connector	072887	300 per box	100 mm	48 mm	1 mm	-	-	-	-	-	Steel	DX51	SV-2
Timber connector	072888	250 per box	125 mm	48 mm	1 mm	-	-	-	-	-	Steel	DX51	SV-2
Timber connector	072882	350 per box	125 mm	24 mm	1 mm	-	-	-	-	-	Steel	DX51	SV-2
Timber connector	0728855	250 per box	175 mm	35 mm	1 mm	-	-	-	-	10 mm	Steel	DX51	SV-2
