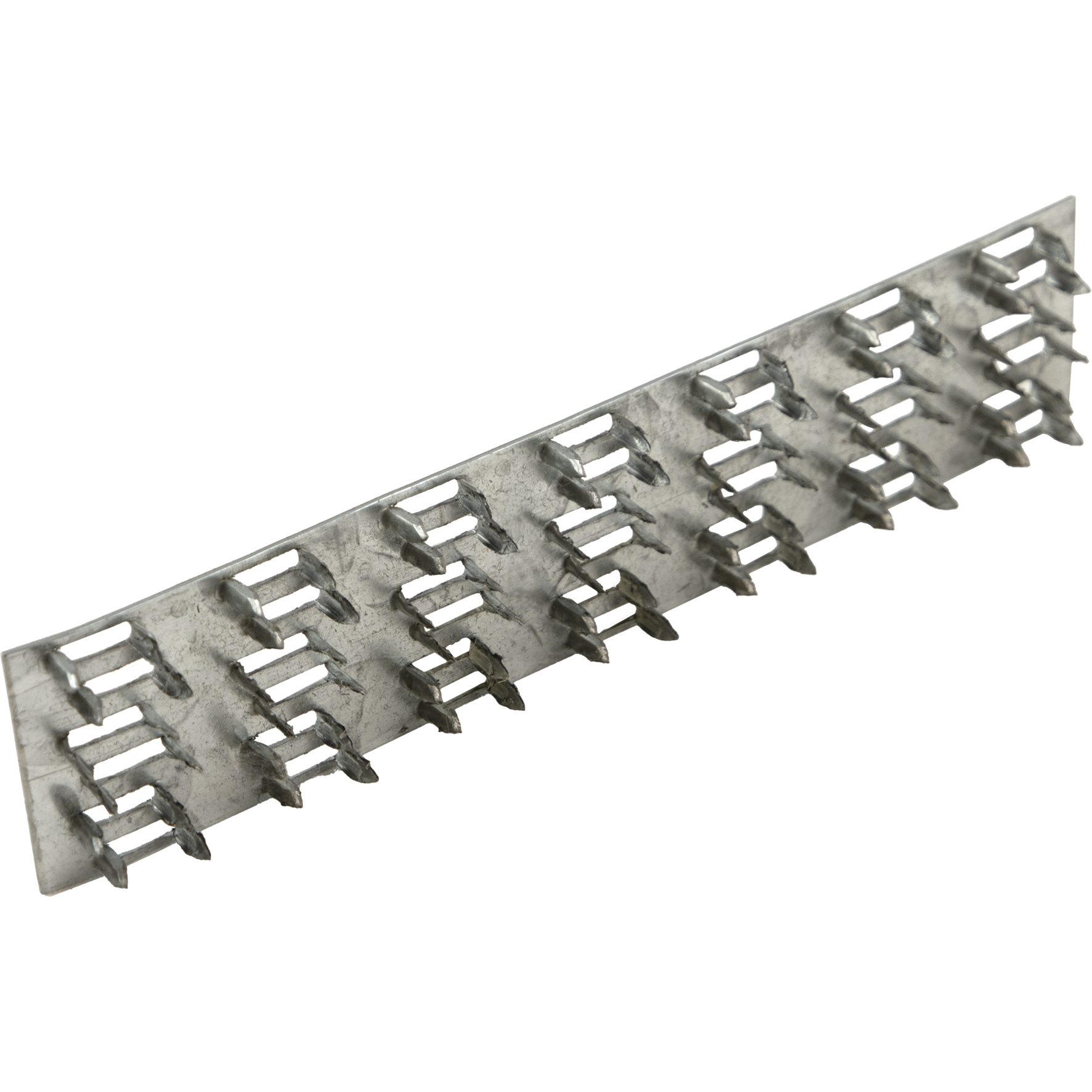

Timber connector

Name: Timber connector
SKU: 072882

Length

100 mm

125 mm

Width

24 mm

48 mm

Thickness

Height

Diameter

Surface treatment

Details & dimensions

Article number072882

EAN code8714318142377

EAN code8714318142360

Packaging350 per box

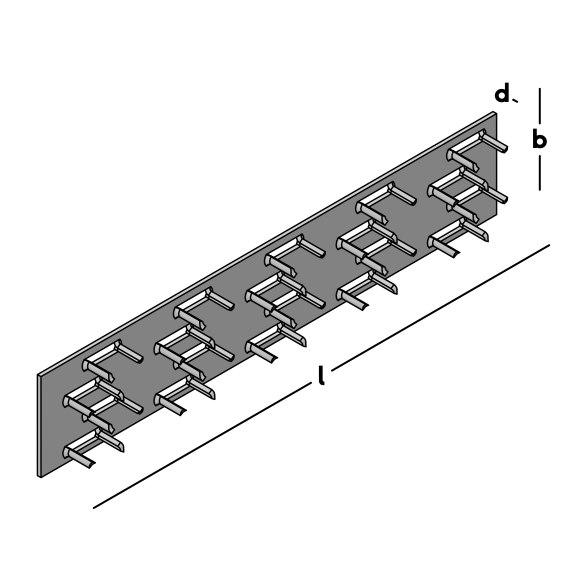

Length (l)125 mm

Width (b)24 mm

Thickness (d)1 mm

MaterialSteel

Steel QualityDX51

Surface treatment SV-2

Drawings and models in 2D and 3D

Name	Article number	Packaging	Length	Width	Thickness	Height	Diameter	Wire	Hole pattern	Material	Steel Quality	Surface treatment
Single sided timber connector	07294	150 per box	-	-	1,2 mm	16 mm	62 mm	M16	1/12,5	Steel	DX51	TV-3
Single sided timber connector	07291	300 per box	-	-	1 mm	12 mm	50 mm	M10	1/11	Steel	DX51	TV-3
Double sided timber connector	07286	25 per box	-	-	1,5 mm	30 mm	117 mm	-	1/48	Steel	DX51	TV-3
Double sided timber connector	07285	40 per box	-	-	1,35 mm	24 mm	95 mm	-	1/33	Steel	DX51	TV-3
Double sided timber connector	07284	100 per box	-	-	1,25 mm	19,5 mm	75 mm	-	1/26	Steel	DX51	SV
Double sided timber connector	07283	100 per box	-	-	1,3 mm	16 mm	62 mm	-	1/21	Steel	DX51	SV
Double sided timber connector	07282	200 per box	-	-	1 mm	12 mm	50 mm	-	1/17	Steel	DX51	SV
Timber connector	072887	300 per box	100 mm	48 mm	1 mm	-	-	-	-	Steel	DX51	SV-2

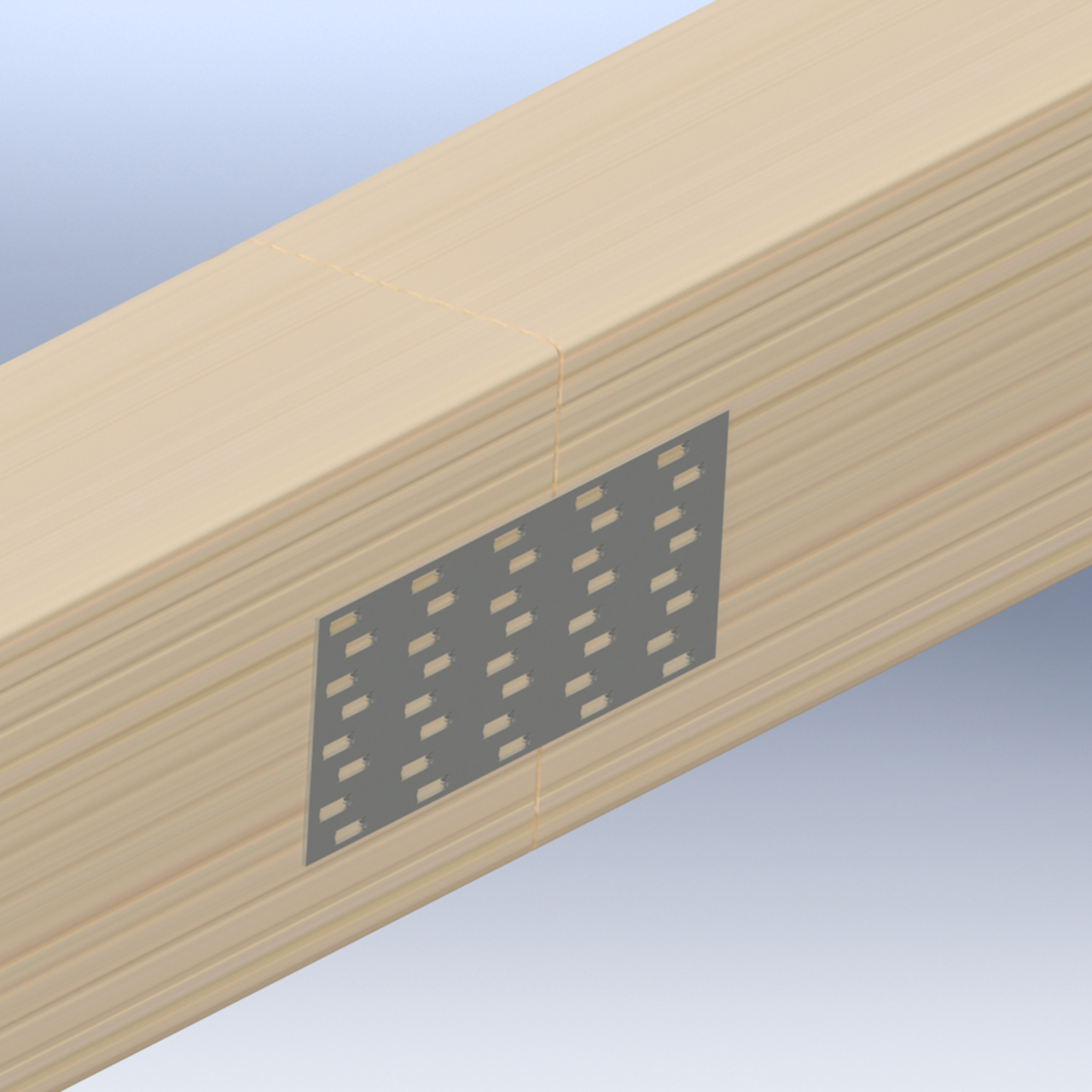

Timber connector	072888	250 per box	125 mm	48 mm	1 mm	-	-	-	-	Steel	DX51	SV-2
Timber connector	072882	350 per box	125 mm	24 mm	1 mm	-	-	-	-	Steel	DX51	SV-2
