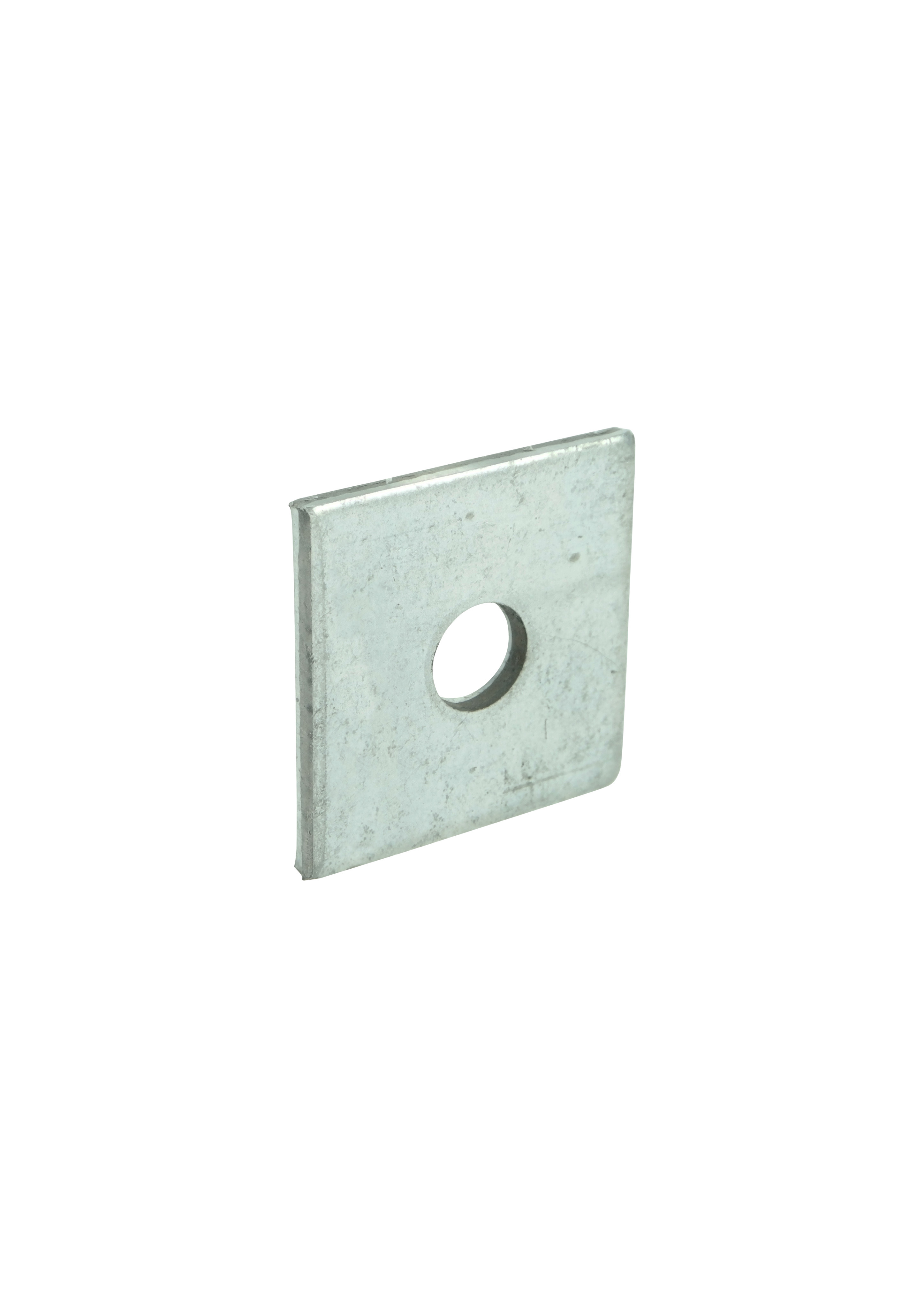

Bearing plate
Length
120 mm
Width
120 mm
Thickness
3 mm
Receivers for
Select an option
Steel Quality
Select an option
Surface treatment
View all product variants
Details & dimensions
Article
Article number
840645
EAN code
8714318028589
Packaging
EAN code
8714318028589
Packaging
1 piece
Dimensions
Bearing plate
Length
120 mm
Width
120 mm
Thickness
3 mm
Wire
Ø22
Hole pattern
1/22
Material
Steel
Surface treatment
Downloads
Drawings and models in 2D and 3D
Product variants
27
Click on a product variant to select it.
All attributes
Name
Article number
Packaging
Length
Width
Thickness
Receivers for
Wire
Hole pattern
Material
Steel Quality
Surface treatment
Bearing plate
84056
1 piece
100 mm
40 mm
8 mm
wire M16
M16
1/18
Steel
S315
BL
Bearing plate
84074
1 piece
150 mm
100 mm
10 mm
wire M16
M16
1/17
Steel
S355
BL
Bearing plate
84084
750 per pallet
150 mm
150 mm
10 mm
wire M16
M16
1/17
Steel
S355
BL
Bearing plate
84085
1 piece
150 mm
150 mm
10 mm
-
M20
1/22
Steel
S355
BL
Bearing plate
84402
250 per box
30 mm
30 mm
2 mm
wire M10
M10
1/10
Steel
DX51
SV-2
Bearing plate
84412
200 per box
40 mm
40 mm
3 mm
wire M10
M10
1/12
Steel
S350
SV-2
Bearing plate
84413
200 per box
40 mm
40 mm
3 mm
wire M12
M12
1/14
Steel
S350
SV-2
Bearing plate
84414
200 per box
40 mm
40 mm
3 mm
wire M16
M16
1/17
Steel
S350
SV-2
Bearing plate
84422
100 per box
50 mm
50 mm
4 mm
wire M10
M10
1/12
Steel
S350
SV-2
Bearing plate
84423
100 per box
50 mm
50 mm
4 mm
wire M12
M12
1/14
Steel
S350
SV-2
Bearing plate
84424
100 per box
50 mm
50 mm
4 mm
wire M16
M16
1/17
Steel
S350
SV-2
Bearing plate
84425
100 per box
50 mm
50 mm
4 mm
wire M20
M20
1/22
Steel
S350
SV-2
Bearing plate
84433
100 per box
60 mm
60 mm
5 mm
wire M12
M12
1/14
Steel
S315
EV-2
Bearing plate
84434
100 per box
60 mm
60 mm
5 mm
wire M16
M16
1/17
Steel
S315
EV-2
Bearing plate
84435
100 per box
60 mm
60 mm
5 mm
wire M20
M20
1/22
Steel
S315
EV-2
Bearing plate
84436
100 per box
60 mm
60 mm
5 mm
wire M24
M24
1/27
Steel
S315
EV-2
Bearing plate
84437
100 per box
60 mm
60 mm
5 mm
wire M12
M12
1/14
Steel
DX51
SV-2
Bearing plate
84438
100 per box
60 mm
60 mm
5 mm
wire M16
M16
1/17
Steel
S350
SV-2
Bearing plate
84439
100 per box
60 mm
60 mm
5 mm
wire M20
M20
1/22
Steel
S350
SV-2
Bearing plate
84440
100 per box
60 mm
60 mm
5 mm
wire M24
M24
1/27
Steel
DX51
SV-2
Bearing plate
84453
25 per box
100 mm
100 mm
6 mm
wire M12
M12
1/14
Steel
S315
TV-3
Bearing plate
84454
25 per box
100 mm
100 mm
6 mm
wire M16
M16
1/17
Steel
S315
TV-3
Bearing plate
84456
25 per box
100 mm
100 mm
6 mm
wire M24
M24
1/27
Steel
S315
TV-3
Bearing plate
84455
25 per box
100 mm
100 mm
6 mm
wire M20
M20
1/22
Steel
S315
TV-3
Bearing plate
84064
1 piece
120 mm
120 mm
3 mm
-
Ø17,3
1/17,3
Steel
S235
BL
Bearing plate
840645
1 piece
120 mm
120 mm
3 mm
-
Ø22
1/22
Steel
-
BL
84850
50 per box
100 mm
40 mm
8 mm
-
-
1/14
Steel
S315
TV-3
