Bearing plate

Name: Bearing plate
SKU: 84056

Length

Width

Thickness

Receivers for

Steel Quality

Surface treatment

Details & dimensions

Article

Article number84056

EAN code8714318002015

Packaging

EAN code8714318002015

Packaging1 piece

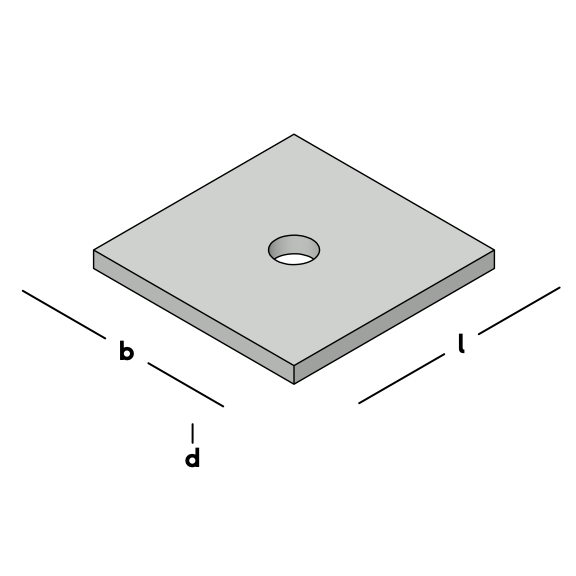

Dimensions

Bearing plate

Length (l)100 mm

Width (b)40 mm

Thickness (d)8 mm

Receivers forwire M16

WireM16

Hole pattern1/18

MaterialSteel

Steel QualityS315

Surface treatment

Downloads

Drawings and models in 2D and 3D

Name	Article number	Packaging	Length	Width	Thickness	Receivers for	Wire	Hole pattern	Material	Steel Quality	Surface treatment
Bearing plate	84056	1 piece	100 mm	40 mm	8 mm	wire M16	M16	1/18	Steel	S315	BL
Bearing plate	84074	1 piece	150 mm	100 mm	10 mm	wire M16	M16	1/17	Steel	S355	BL
Bearing plate	84084	750 per pallet	150 mm	150 mm	10 mm	wire M16	M16	1/17	Steel	S355	BL
Bearing plate	84085	1 piece	150 mm	150 mm	10 mm	-	M20	1/22	Steel	S355	BL
Bearing plate	84402	250 per box	30 mm	30 mm	2 mm	wire M10	M10	1/10	Steel	DX51	SV-2
Bearing plate	84412	200 per box	40 mm	40 mm	3 mm	wire M10	M10	1/12	Steel	S350	SV-2
Bearing plate	84413	200 per box	40 mm	40 mm	3 mm	wire M12	M12	1/14	Steel	S350	SV-2
Bearing plate	84414	200 per box	40 mm	40 mm	3 mm	wire M16	M16	1/17	Steel	S350	SV-2
Bearing plate	84422	100 per box	50 mm	50 mm	4 mm	wire M10	M10	1/12	Steel	S350	SV-2
Bearing plate	84423	100 per box	50 mm	50 mm	4 mm	wire M12	M12	1/14	Steel	S350	SV-2
Bearing plate	84424	100 per box	50 mm	50 mm	4 mm	wire M16	M16	1/17	Steel	S350	SV-2
Bearing plate	84425	100 per box	50 mm	50 mm	4 mm	wire M20	M20	1/22	Steel	S350	SV-2
Bearing plate	84433	100 per box	60 mm	60 mm	5 mm	wire M12	M12	1/14	Steel	S315	EV-2
Bearing plate	84434	100 per box	60 mm	60 mm	5 mm	wire M16	M16	1/17	Steel	S315	EV-2
Bearing plate	84435	100 per box	60 mm	60 mm	5 mm	wire M20	M20	1/22	Steel	S315	EV-2
Bearing plate	84436	100 per box	60 mm	60 mm	5 mm	wire M24	M24	1/27	Steel	S315	EV-2
Bearing plate	84437	100 per box	60 mm	60 mm	5 mm	wire M12	M12	1/14	Steel	DX51	SV-2
Bearing plate	84438	100 per box	60 mm	60 mm	5 mm	wire M16	M16	1/17	Steel	S350	SV-2
Bearing plate	84439	100 per box	60 mm	60 mm	5 mm	wire M20	M20	1/22	Steel	S350	SV-2
Bearing plate	84440	100 per box	60 mm	60 mm	5 mm	wire M24	M24	1/27	Steel	DX51	SV-2
Bearing plate	84453	25 per box	100 mm	100 mm	6 mm	wire M12	M12	1/14	Steel	S315	TV-3
Bearing plate	84454	25 per box	100 mm	100 mm	6 mm	wire M16	M16	1/17	Steel	S315	TV-3
Bearing plate	84456	25 per box	100 mm	100 mm	6 mm	wire M24	M24	1/27	Steel	S315	TV-3
Bearing plate	84455	25 per box	100 mm	100 mm	6 mm	wire M20	M20	1/22	Steel	S315	TV-3
Bearing plate	84064	1 piece	120 mm	120 mm	3 mm	-	Ø17,3	1/17,3	Steel	S235	BL
Bearing plate	840645	1 piece	120 mm	120 mm	3 mm	-	Ø22	1/22	Steel	-	BL
	84850	50 per box	100 mm	40 mm	8 mm	-	-	1/14	Steel	S315	TV-3
