Window frame anchor
L-shaped anchor with wood thread on the long side for screwing into the (set) frame. The other side has a right-angled turned part that can be bricked into the ribbon joint of the internal cavity wall.
Details & dimensions
Article
Article number20613
EAN code8714318001322
Packaging
EAN code8714318101237
Packaging100 per box
Length335 mm
Width140 mm
Height63 mm

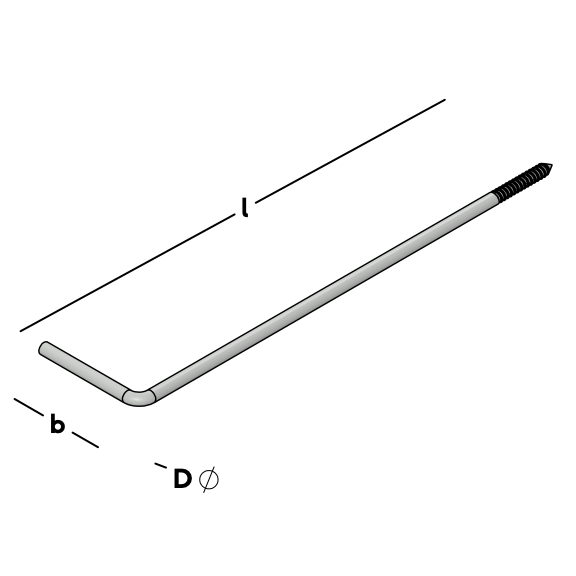

Dimensions
Window frame anchor
Length (l)250 mm
Width (b)60 mm
Diameter6 mm
Environmental classMX 3.1
MaterialRVS 304
Steel QualityW-Nr.:1.4567
Surface treatment
