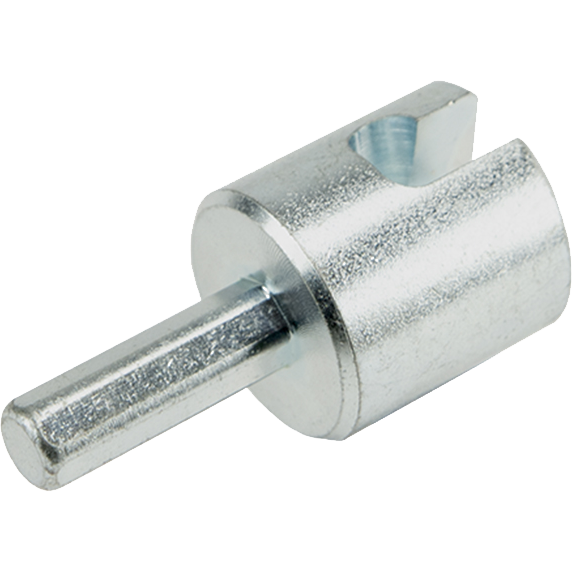

UNI-installation drive tool

Name: UNI-installation drive tool
SKU: 39009

Hand tool or drill attachment for screwing frame anchors into a wooden frame.

Length

Width

Diameter

6 mm

18 mm

30 mm

Receivers for

End wall anchor with wood grain Ø4

Slip tie Ø6

Window frame anchor

Environmental class

MX 1

MX 3.1

Material

RVS 304

Steel

Steel Quality

DX51

W-Nr.:1.4567

Surface treatment

Details & dimensions

Article

Article number39009

EAN code8714318042950

Packaging

EAN code8714318042950

Packaging1 piece

Length50 mm

Width24 mm

Height24 mm

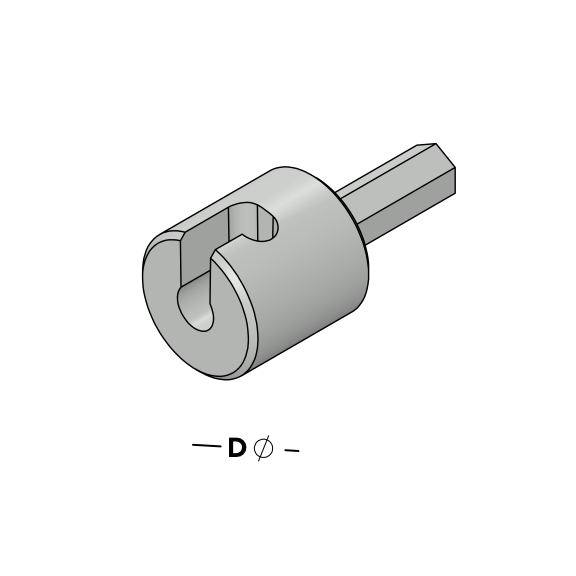

Dimensions

UNI-installation drive tool

Length (l)25 mm

Width (b)24 mm

Diameter30 mm

Receivers forSlip tie Ø6

Slot size17,3x13x6,5 mm

MaterialSteel

Steel QualityDX51

Surface treatment EV-2

Downloads

Drawings and models in 2D and 3D

Processing & accessories

You can use the products below to place or confirm the product correctly.

Name	Article number	Packaging	Length	Width	Height 1	Height 2	Diameter	Receivers for	Slot size	Environmental class	Material	Steel Quality	Surface treatment
Window frame anchor	20613	100 per box	250 mm	60 mm	-	-	6 mm	-	-	MX 3.1	RVS 304	W-Nr.:1.4567	VD
Window frame anchor	20612	100 per box	200 mm	50 mm	-	-	6 mm	-	-	MX 3.1	RVS 304	W-Nr.:1.4567	VD
Window frame anchor	20223	100 per box	230 mm	-	-	-	6 mm	-	-	MX 1	Steel	DX51	VD
Window frame anchor	20213	100 per box	250 mm	60 mm	-	-	6 mm	-	-	MX 1	Steel	DX51	VD
Window frame anchor	20212	100 per box	200 mm	50 mm	-	-	6 mm	-	-	MX 1	Steel	DX51	VD
Window frame anchor	20211	100 per box	150 mm	40 mm	-	-	6 mm	-	-	MX 1	Steel	DX51	VD
UNI-installation drive tool	39006	1 piece	100 mm	-	-	-	18 mm	Slip tie Ø6	-	-	Steel	DX51	AL-1
Special attachment	39008	1 piece	25 mm	30 mm	50 mm	25 mm	30 mm	End wall anchor with wood grain Ø4	17,5x13x4,5 mm	-	Steel	DX51	EV
UNI-installation drive tool	39009	1 piece	25 mm	24 mm	-	-	30 mm	Slip tie Ø6	17,3x13x6,5 mm	-	Steel	DX51	EV-2
UNI-installation drive tool	39013	1 piece	150 mm	-	-	-	-	Window frame anchor	-	-	Steel	DX51	EV-2
