Angle bracket

Name: Angle bracket
SKU: 072455

Heavy corner anchors are primarily used to secure heavy window frames to posts and lintels. Because of the slotted holes, this corner anchor is easily adjustable.

Length 1

Length 2

Width

Thickness

Slotted hole

Steel Quality

Surface treatment

EV-2

SV-2

TV-3

Details & dimensions

Article

Article number072455

EAN code8714318051082

Packaging

EAN code8714318051075

Packaging25 per box

Length240 mm

Width170 mm

Height70 mm

Dimensions

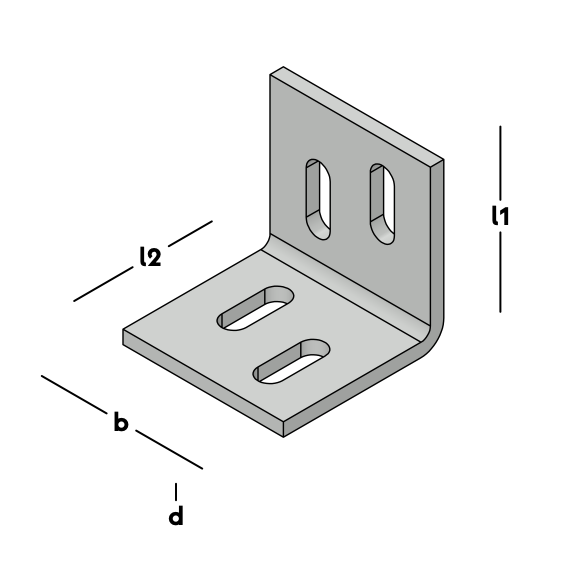

Angle bracket

Length 1 (l1)60 mm

Length 2 (l2)60 mm

Width (b)60 mm

Thickness (d)5 mm

Slotted hole4/9x25 mm

MaterialSteel

Steel QualityDX51

Surface treatment SV-2

Downloads

Drawings and models in 2D and 3D

Name	Article number	Packaging	Length 1	Length 2	Width	Thickness	Slotted hole	Hole pattern	Material	Steel Quality	Surface treatment
Angle bracket	07241	25 per box	55 mm	105 mm	50 mm	5 mm	13x40 mm	4/6,5-1/11	Steel	DX51	SV-2
Concrete angle bracket	07242	50 per box	55 mm	80 mm	40 mm	4 mm	9x30 mm	2/6,5-1/9	Steel	S350	SV-2
Concrete angle bracket	07243	50 per box	30 mm	100 mm	60 mm	4 mm	13x40 mm	8/5,5	Steel	S350	SV-2
Angle bracket	072455	25 per box	60 mm	60 mm	60 mm	5 mm	4/9x25 mm	-	Steel	DX51	SV-2
Concrete angle bracket	07246	25 per box	65 mm	105 mm	60 mm	4 mm	13x40 mm	10/5,5-1/9	Steel	S350	SV-2
Concrete angle bracket	07247	25 per box	65 mm	155 mm	60 mm	4 mm	13x40 mm	13/5,5-2/9	Steel	S350	SV-2
Angle bracket	074460	25 per box	40 mm	115 mm	60 mm	5 mm	2/9x20 mm	3/9	Steel	S235	TV-3
Concrete angle bracket	0756643	30 per bag	40 mm	120 mm	60 mm	6 mm	13x65 mm	2/9-1/11	Steel	DX51	SV-2
Concrete angle bracket	0756646	30 per bag	40 mm	150 mm	60 mm	6 mm	13x65 mm	2/9-1/11	Steel	DX51	SV-2
Concrete angle bracket	0756647	30 per bag	40 mm	150 mm	60 mm	6 mm	17x70 mm	2/9-1/11	Steel	DX51	SV-2
Concrete angle bracket	0756666	30 per bag	60 mm	100 mm	60 mm	6 mm	13x65 mm	2/9-1/11	Steel	DX51	SV-2
Angle bracket	0756656	10 per bunch	50 mm	150 mm	110 mm	6 mm	13x65 mm	3/11	Steel	S350	SV-2
Concrete angle bracket	0756667	30 per bag	60 mm	100 mm	60 mm	6 mm	17x70 mm	2/9-1/11	Steel	DX51	SV-2
Concrete angle bracket	0756676	30 per bag	70 mm	120 mm	60 mm	6 mm	13x65 mm	2/9-1/11	Steel	DX51	SV-2
Concrete angle bracket	0756677	30 per bag	70 mm	120 mm	60 mm	6 mm	17x70 mm	2/9-1/11	Steel	DX51	SV-2
Concrete angle bracket	0756696	30 per bag	90 mm	100 mm	60 mm	6 mm	13x65 mm	2/9-1/11	Steel	DX51	SV-2
Concrete angle bracket	0756697	30 per bag	90 mm	100 mm	60 mm	6 mm	17x70 mm	2/9-1/11	Steel	DX51	SV-2
Concrete angle bracket	0758546	25 per bag	40 mm	150 mm	50 mm	8 mm	13x65 mm	1/11	Steel	S315	TV-3
Concrete angle bracket	0758566	25 per bag	60 mm	100 mm	50 mm	8 mm	13x65 mm	2/9-1/11	Steel	S315	TV-3
Concrete angle bracket	0758576	25 per box	70 mm	120 mm	50 mm	8 mm	13x65 mm	2/9-1/11	Steel	S315	TV-3
Concrete angle bracket	0758746	25 per box	40 mm	150 mm	70 mm	8 mm	13x65 mm	2/9-1/11	Steel	S315	TV-3
Concrete angle bracket	07587460	25 per box	40 mm	150 mm	70 mm	8 mm	13x65 mm	2/9-1/11	Steel	S315	EV-2
Concrete angle bracket	0758747	25 per bag	40 mm	150 mm	70 mm	8 mm	17x70 mm	2/9-1/11	Steel	S315	TV-3
Concrete angle bracket	0758766	25 per box	60 mm	100 mm	70 mm	8 mm	13x65 mm	2/9-1/11	Steel	S315	TV-3
