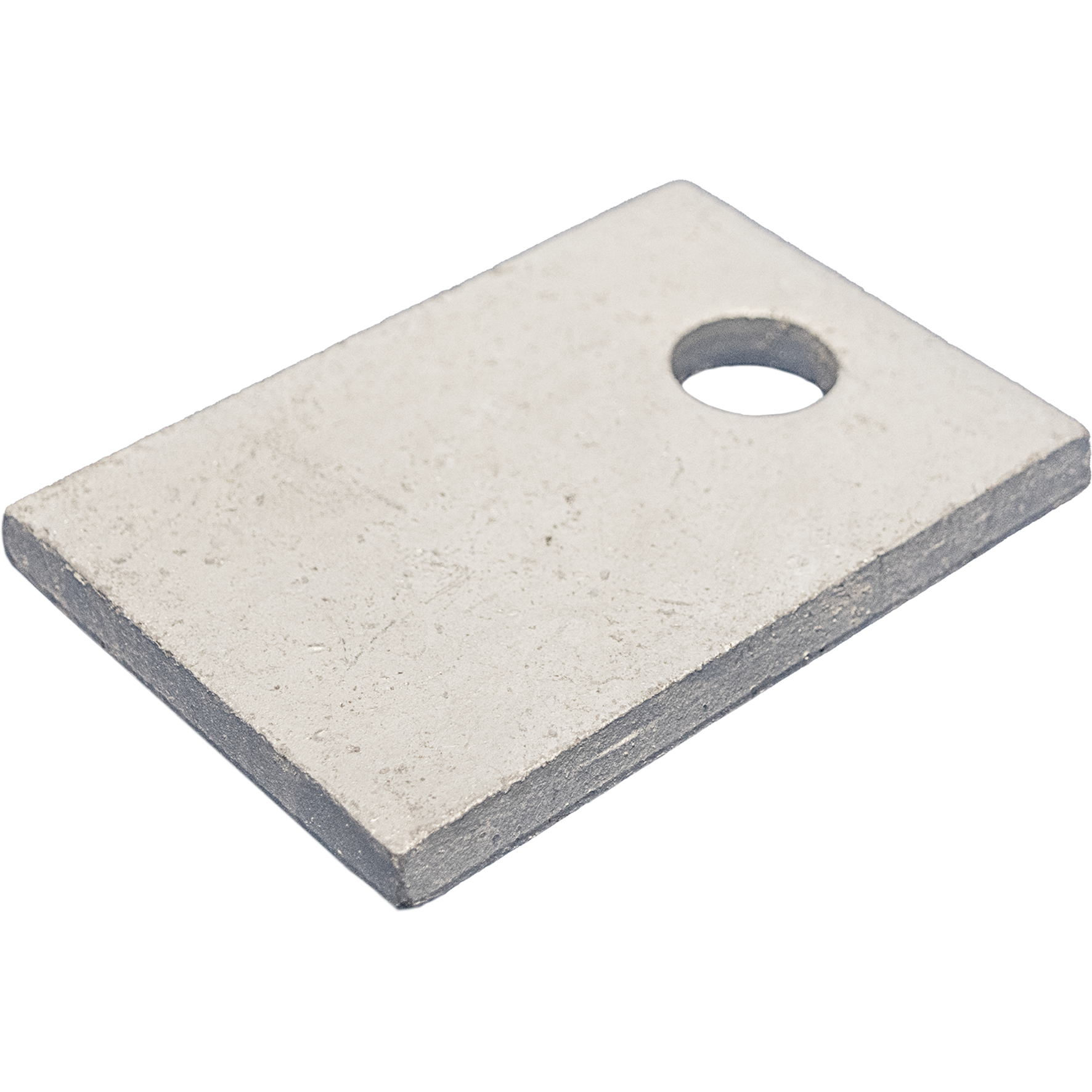

Bearing plate

Name: Bearing plate
SKU: 07493113

Length

Width

Thickness

Height

Steel Quality

DX51

S315

S350

Surface treatment

SV-2

TV-3

Details & dimensions

Article

Article number07493113

EAN code8714318138080

Packaging

EAN code8714318138080

Packaging1 piece

Length113 mm

Width80 mm

Height10 mm

Dimensions

Bearing plate

Length (l)113 mm

Width (b)80 mm

Thickness (d)10 mm

Hole pattern1/22

MaterialSteel

Steel QualityS315

Surface treatment TV-3

Downloads

Drawings and models in 2D and 3D

Certifications, quality marks and technical sheets

Technical Sheet

Processing & accessories

1 / 6

View our assembly instructions here that help you step by step to an end result.

Name	Article number	Packaging	Length	Width	Thickness	Height	Hole pattern	Attachments	Material	Steel Quality	Surface treatment
Tie bar with 2 Bearing plate	074916	25 per box	50 mm	40 mm	2 mm	160 mm	12/5-1/14	including 2 Bearing plate 50x50x4	Steel	DX51	SV-2
Tie bar with 2 Bearing plate	074919	25 per box	50 mm	40 mm	2 mm	190 mm	12/5-1/14	including 2 Bearing plate 50x50x4	Steel	DX51	SV-2
Tie bar with 2 Bearing plate	074929	25 per box	50 mm	40 mm	2 mm	290 mm	15/5-1/14	including 2 Bearing plate 50x50x4	Steel	DX51	SV-2
Tie bar	074940	5 per box	60 mm	72 mm	4 mm	400 mm	23/5-2/9-2/17	-	Steel	S350	SV-2
Tie bar	074956	5 per box	60 mm	72 mm	4 mm	560 mm	36/5-2/17-3/19	-	Steel	S350	SV-2
Tie bar	074979	5 per box	60 mm	72 mm	4 mm	790 mm	5/9-54/5-2/17	-	Steel	S350	SV-2
	0749340	5 per box	120 mm	72 mm	4 mm	400 mm	10/9-1/22	-	Steel	S350	SV-2
	0749356	5 per box	120 mm	72 mm	4 mm	560 mm	16/9-1/22	-	Steel	S350	SV-2
	0749379	5 per box	120 mm	72 mm	4 mm	790 mm	22/9-1/22	-	Steel	S350	SV-2
Bearing plate	07493113	1 piece	113 mm	80 mm	10 mm	-	1/22	-	Steel	S315	TV-3
Bearing plate	07493950	1 piece	50 mm	50 mm	8 mm	-	1/17	-	Steel	S315	TV-3
