Angle bracket heavy duty

Name: Angle bracket heavy duty
SKU: 82418

Length 1

Length 2

Width

20 mm

25 mm

30 mm

Thickness

4 mm

5 mm

Details & dimensions

Article number82418

EAN code8714318075200

EAN code8714318143213

Packaging30 per box

Length455 mm

Width260 mm

Height100 mm

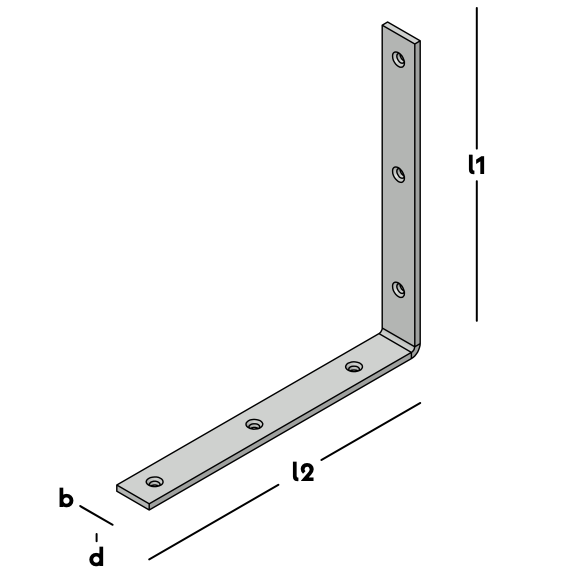

Length 1 (l1)250 mm

Length 2 (l2)250 mm

Width (b)30 mm

Thickness (d)5 mm

Hole pattern6/7

MaterialSteel

Steel QualityS350

Surface treatment ZM-4

Drawings and models in 2D and 3D

Name	Article number	Packaging	Length 1	Length 2	Width	Thickness	Hole pattern	Material	Steel Quality	Surface treatment
Angle bracket heavy duty	82418	30 per box	250 mm	250 mm	30 mm	5 mm	6/7	Steel	S350	ZM-4
Angle bracket heavy duty	82419	25 per bunch	300 mm	300 mm	30 mm	5 mm	8/7	Steel	S350	ZM-4
Angle bracket heavy duty	82470	50 per box	100 mm	100 mm	20 mm	4 mm	4/6,5	Steel	S350	ZM-4
Angle bracket heavy duty	82471	25 per bunch	125 mm	125 mm	20 mm	4 mm	4/6,5	Steel	S350	ZM-4
Angle bracket heavy duty	82472	50 per box	150 mm	150 mm	25 mm	4 mm	4/7	Steel	S350	ZM-4
Angle bracket heavy duty	82473	50 per box	175 mm	175 mm	25 mm	4 mm	6/7	Steel	S350	ZM-4
Angle bracket heavy duty	82474	25 per bunch	200 mm	200 mm	25 mm	4 mm	6/7	Steel	S350	ZM-4
