CLT Angle bracket

Name: CLT Angle bracket
SKU: 01720

Angle bracket specifically developed for CLT and timber construction.

Length

136 mm

224 mm

Width 1

75 mm

114 mm

Width 2

75 mm

140 mm

Details & dimensions

Article number01720

EAN code8714318134624

EAN code8714318134617

Packaging10 per box

Length325 mm

Width225 mm

Height130 mm

Length (l)224 mm

Width 1 (b1)114 mm

Width 2 (b2)140 mm

Thickness (d)2,5 mm

Hole pattern20/8,5-2/13

MaterialSteel

Steel QualityS350

Surface treatment ZM-4

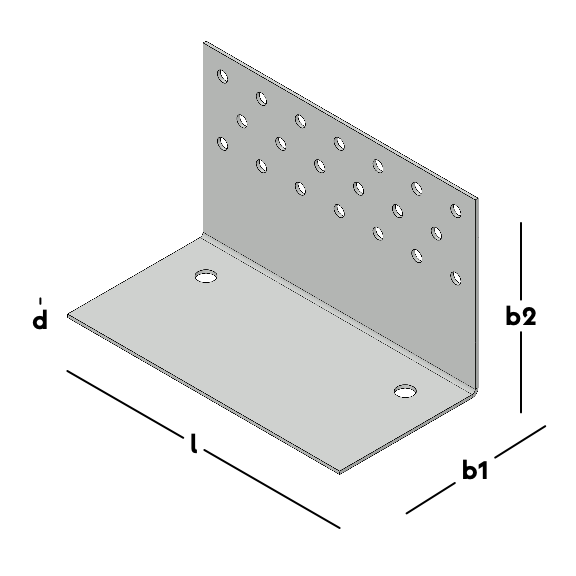

Drawings and models in 2D and 3D

You can use the products below to place or confirm the product correctly.

Name	Article number	Packaging	Length	Width 1	Width 2	Thickness	Hole pattern	Material	Steel Quality	Surface treatment
CLT Angle bracket	01711	30 per box	136 mm	75 mm	75 mm	2,5 mm	12/7-2/13	Steel	S350	ZM-4
CLT Angle bracket	01720	10 per box	224 mm	114 mm	140 mm	2,5 mm	20/8,5-2/13	Steel	S350	ZM-4
CLT Angle bracket incl bearing plate	01721	5 per box	224 mm	114 mm	140 mm	2,5 mm	20/8,5-2/13	Steel	S350	ZM-4
