pin Position

Name: pin Position
SKU: 390015

Positioning pin for inserting dowels through the front wall shell into the rear wall shell.

Length

182 mm

280 mm

300 mm

Diameter

3,5 mm

7,5 mm

10 mm

Surface treatment

Details & dimensions

Article number390015

EAN code8714318051068

EAN code8714318051068

Packaging1 piece

Length300 mm

Width10 mm

Height10 mm

Length (l)300 mm

Diameter10 mm

MaterialSteel

Steel QualityDX51

Surface treatment

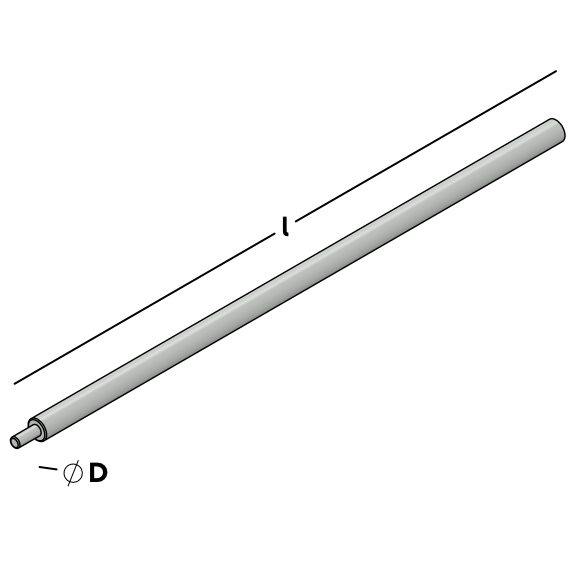

Drawings and models in 2D and 3D

1 / 4

View our assembly instructions here that help you step by step to an end result.

You can use the products below to place or confirm the product correctly.

Name	Article number	Packaging	Length	Diameter	Stroke part	Handle	Material	Steel Quality	Surface treatment
Renovation special attachment	390010	1 piece	280 mm	3,5 mm	-	Handvat 130 mm mm	Steel	DX51	BL
Renovation firing pin	390011	1 piece	182 mm	7,5 mm	52 mm	Handvat 130 mm mm	Steel	DX51	BL
pin Position	390015	1 piece	300 mm	10 mm	-	-	Steel	DX51	EV
