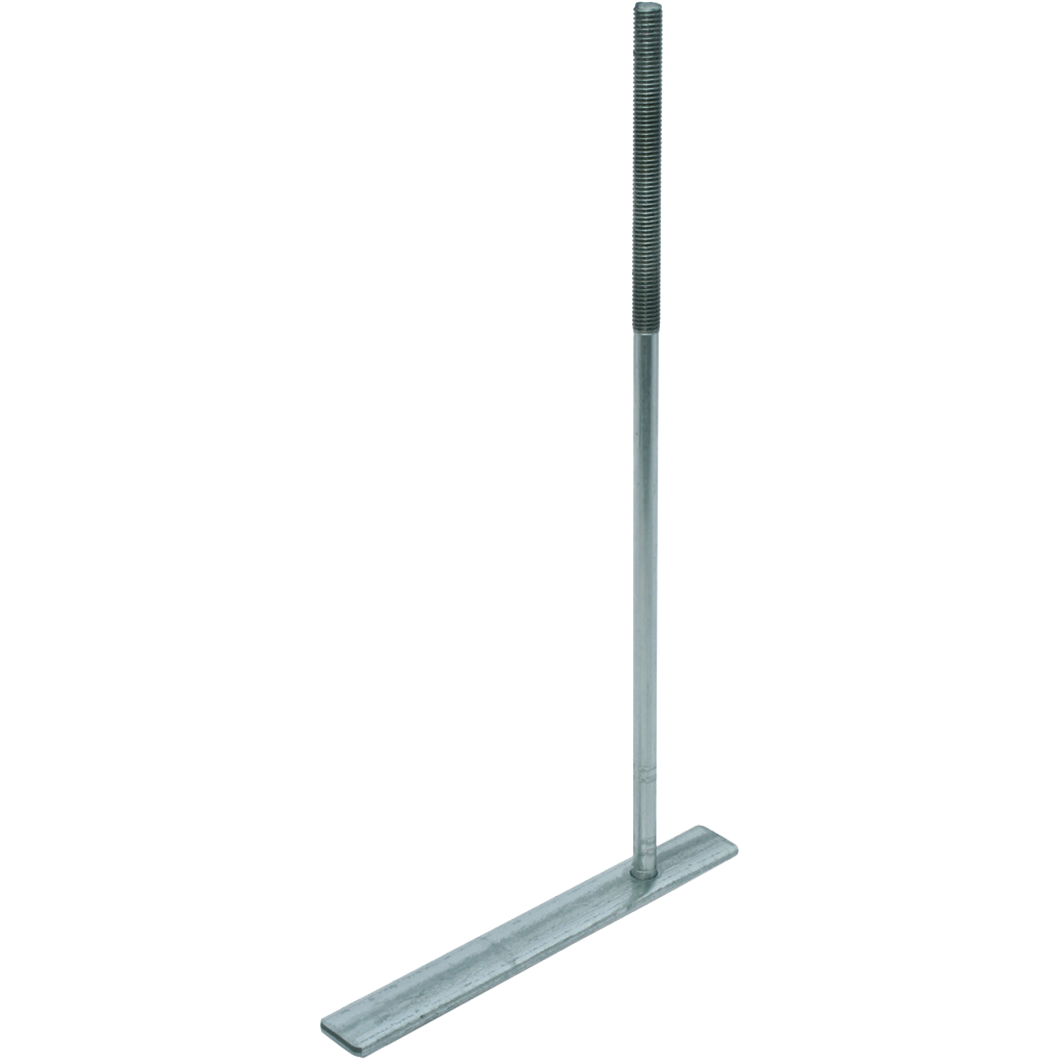

Wall frame tie anchor

Name: Wall frame tie anchor
SKU: 06675

Length

Heart pin front plate

Details & dimensions

Article number06675

EAN code8714318137793

EAN code8714318137786

Packaging10 per bunch

Length325 mm

Width30 mm

Height610 mm

Length (l)600 mm

Diameter10,7 mm

Plaatbreedte (pb)30 mm

Plate Length (pl)375 mm

Heart pin front plate325 mm

Typeexcentrisch

MaterialSteel

Steel QualityS235

Surface treatment VD-1

Drawings and models in 2D and 3D

Name	Article number	Packaging	Length	Diameter	Plaatbreedte	Plate Length	Sheet thickness	Heart pin front plate	Type	Material	Steel Quality	Surface treatment
Wall Anchor with Plate eccentric	06570	25 per bag	400 mm	10,7 mm	30 mm	225 mm	-	175 mm	excentrisch	Steel	S235	VD-1
Wall Anchor with Plate eccentric	06572	10 per bunch	500 mm	10,7 mm	30 mm	225 mm	-	175 mm	excentrisch	Steel	S235	VD-1
Wall Anchor with Plate eccentric	06574	10 per bunch	600 mm	10,7 mm	30 mm	225 mm	-	175 mm	excentrisch	Steel	S235	VD-1
Wall frame tie anchor	06674	10 per bunch	600 mm	10,7 mm	30 mm	275 mm	5 mm	225 mm	excentrisch	Steel	S235	VD-1
Wall frame tie anchor	06675	10 per bunch	600 mm	10,7 mm	30 mm	375 mm	-	325 mm	excentrisch	Steel	S235	VD-1
Wall frame tie anchor	06676	10 per bunch	600 mm	10,7 mm	30 mm	325 mm	-	275 mm	excentrisch	Steel	S235	VD-1
Wall Anchor with Plate eccentric	06576	10 per bunch	800 mm	10,7 mm	30 mm	225 mm	-	175 mm	excentrisch	Steel	S235	VD-1
Wall frame tie anchor	066755	10 per bunch	800 mm	10,7 mm	30 mm	325 mm	-	275 mm	excentrisch	Steel	S235	VD-1
Wall frame tie anchor	066765	10 per bunch	800 mm	10,7 mm	30 mm	375 mm	-	325 mm	excentrisch	Steel	S235	VD-1
Wall Anchor with Plate eccentric	06578	10 per bunch	1000 mm	10,7 mm	30 mm	225 mm	-	175 mm	excentrisch	Steel	S235	VD-1
