Z-Anchor for handrail fixing
Set mounting plate for installing a Handrail Anchor as part of temporary edge protection.
Details & dimensions
Article
Article number10090
EAN code8714318005375
Packaging
EAN code8714318115784
Packaging50 per box
Length240 mm
Width170 mm
Height70 mm

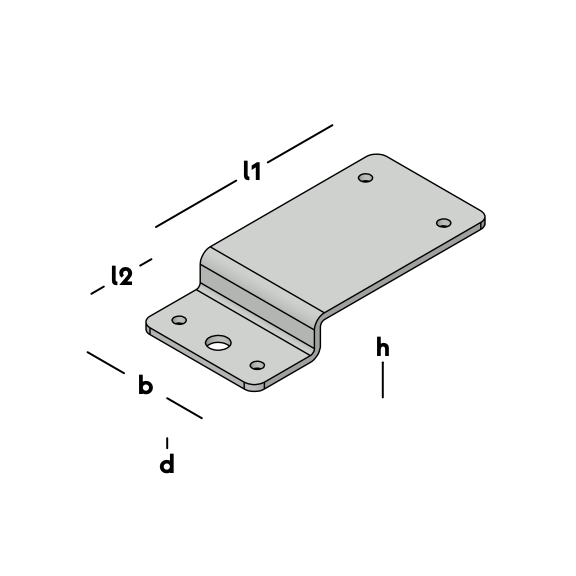

Dimensions
Z-Anchor for handrail fixing
Length 1 (l1)85 mm
Length 2 (l2)30 mm
Width (b)57 mm
Thickness (d)3 mm
Height (h)15 mm
Hole pattern4/5-1/9
MaterialSteel
Steel QualityS280
Surface treatment
