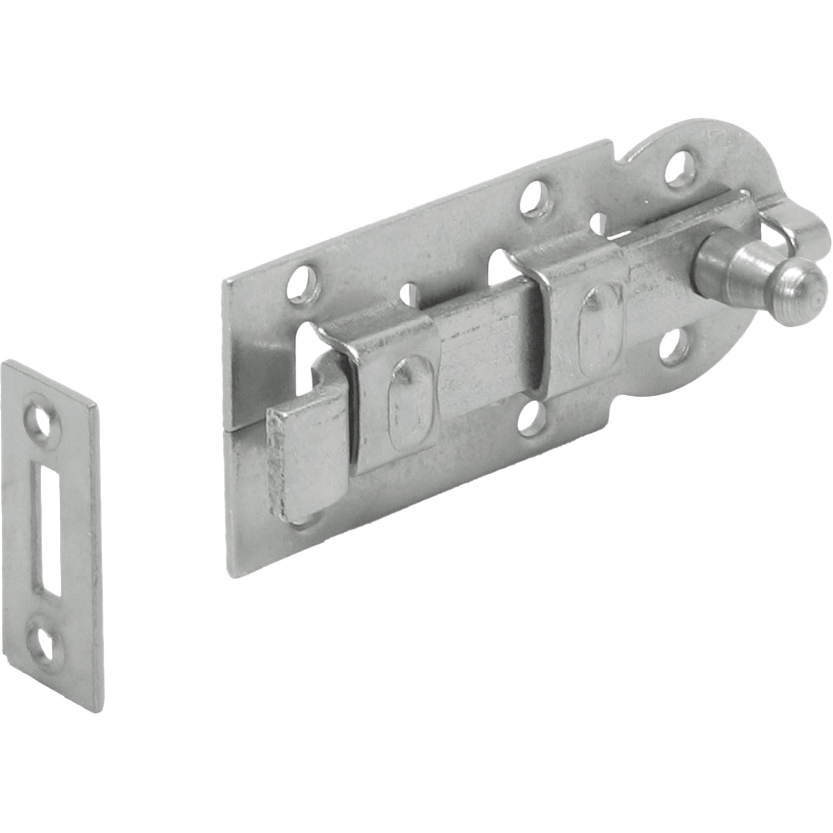

Sliding latch with offset

Name: Sliding latch with offset
SKU: 744814

Length

Width

Thickness

Steel Quality

DX51

W-Nr.: 1.4301

Surface treatment

Details & dimensions

Article number744814

EAN code8714318098315

EAN code8714318098322

Packaging10 per box

Length215 mm

Width180 mm

Height80 mm

Length (l)140 mm

Width (b)54 mm

Hole pattern6/4,5-2/5

MaterialSteel

Steel QualityW-Nr.: 1.4301

Surface treatment 304

Drawings and models in 2D and 3D

Name	Article number	Packaging	Length	Width	Thickness	Hole pattern	Material	Steel Quality	Surface treatment
Sliding latch with offset	74479	10 per box	100 mm	44 mm	4 mm	8/5	Steel	DX51	EV-2
Sliding latch with offset	74480	10 per box	120 mm	56 mm	5 mm	8/5	Steel	DX51	EV-2
Sliding latch with offset	74481	10 per box	140 mm	56 mm	5 mm	8/5	Steel	DX51	EV-2
Sliding latch with offset	744814	10 per box	140 mm	54 mm	-	6/4,5-2/5	Steel	W-Nr.: 1.4301	304
Sliding latch with offset	74482	10 per box	160 mm	66 mm	6 mm	8/5	Steel	DX51	EV-2
Sliding latch with offset	74484	5 per box	200 mm	80 mm	8 mm	8/5	Steel	DX51	EV-2
