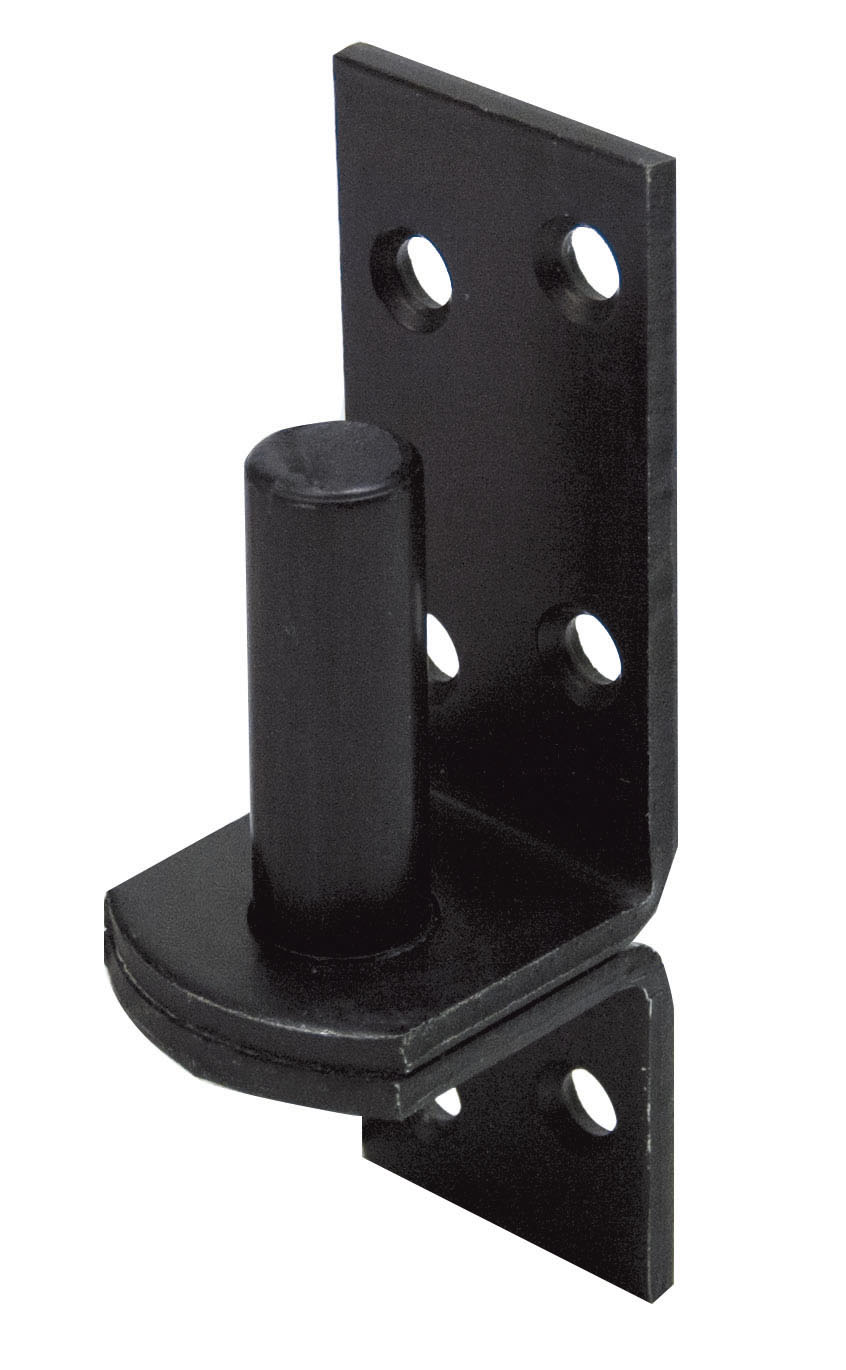

Hinge hook

Name: Hinge hook
SKU: 499404

Width

30 mm

35 mm

38 mm

Thickness

4 mm

5 mm

Height

Material

RVS 304

Steel

Steel Quality

Surface treatment

Details & dimensions

Article number499404

EAN code8714318142032

EAN code8714318142018

Packaging50 per box

Length325 mm

Width225 mm

Height170 mm

Width (b)38 mm

Thickness (d)5 mm

Height (h)117 mm

Hole pattern6/7

Backplate38x117 mm

Size pinionØ16x45

Heart pin front plate21 mm

Steel QualityS235

Surface treatment ZV-2

Drawings and models in 2D and 3D

Name	Article number	Packaging	Width	Thickness	Height	Hole pattern	Backplate	Size pinion	Heart pin front plate	Material	Steel Quality	Surface treatment
Hinge hook	492524	50 per box	35 mm	4 mm	97 mm	6/7	35x97 mm	Ø16x45	21 mm	RVS 304	W-Nr.: 1.4301	304
Hinge hook	49404	50 per box	38 mm	5 mm	117 mm	6/7	38x117 mm	Ø16x45	21 mm	Steel	S235	EV-2
Hinge hook	49405	50 per box	38 mm	4 mm	117 mm	6/7	38x117 mm	Ø16x45	21 mm	Steel	S350	ZM-4
Hinge hook	49504	50 per box	38 mm	5 mm	117 mm	6/7	38x117 mm	Ø16x45	21 mm	Steel	DX51	TV-3
Hinge hook	49905	10 per box	38 mm	5 mm	117 mm	6/7	38x117 mm	Ø16x45	21 mm	Steel	S315	EPZ-3
Hinge hook Rustica	49843	10 per box	38 mm	5 mm	210 mm	2/9	38x210 mm	Ø16x45	21 mm	Steel	S315	EPZ-3
Hinge hook Rustica	49841	10 per box	30 mm	5 mm	150 mm	2/7	30x150 mm	Ø16x35	21 mm	Steel	S315	EPZ-3
Hinge hook	499404	50 per box	38 mm	5 mm	117 mm	6/7	38x117 mm	Ø16x45	21 mm	-	S235	ZV-2
