High pressure plate Eco

Name: High pressure plate Eco
SKU: 349221

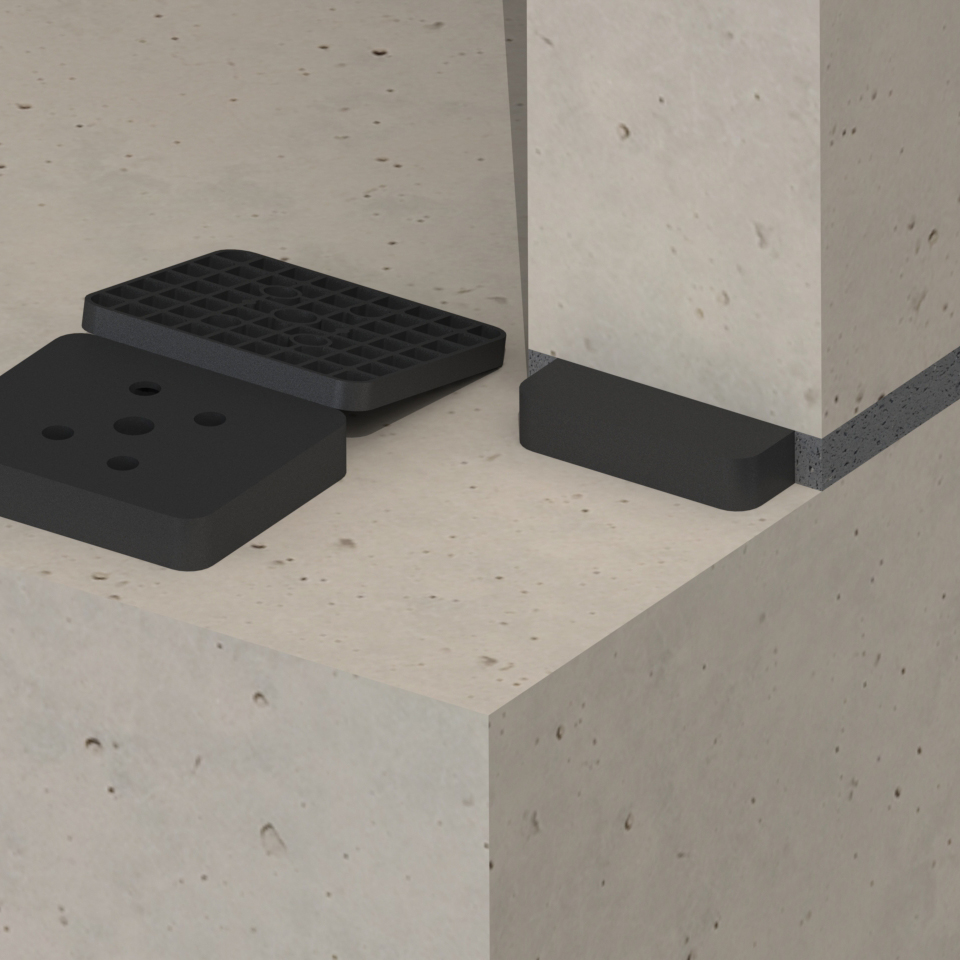

High-pressure plate, for absorbing height differences of structural elements and constructions (concrete and/or timber frame construction elements). Evenly distributed load capacity up to 6,900 kg.

Length

70 mm

100 mm

Width

70 mm

120 mm

Thickness

10 mm

20 mm

Press Load max

2500 kg

17500 kg

20000 kg

Material quality

ABS

Details & dimensions

Article

Article number349221

EAN code8714318084288

Packaging

EAN code8714318084295

Packaging48 per bag

Length520 mm

Width300 mm

Height200 mm

Dimensions

High pressure plate Eco

Length (l)100 mm

Width (b)120 mm

Thickness (d)20 mm

Hole pattern4/11-1/14

Press Load max20000 kg

Colorblack

MaterialPlastic

Material quality ABS

Downloads

Drawings and models in 2D and 3D

Certifications, quality marks and technical sheets

Technical Sheet

Name	Article number	Packaging	Length	Width	Thickness	Hole pattern	Press Load max	Slot size	Color	Material	Material quality	Surface treatment
High pressure plate Eco	349211	48 per bag	100 mm	120 mm	10 mm	4/11-1/14	17500 kg	-	black	Plastic	ABS	-
High pressure plate Eco	349221	48 per bag	100 mm	120 mm	20 mm	4/11-1/14	20000 kg	-	black	Plastic	ABS	-
Pressure plate Eco	34760	40 per bag	70 mm	70 mm	20 mm	2/9	2500 kg	45x22 mm	Black	Plastic	PP	KS
