XL-Prefab angle bracket

Name: XL-Prefab angle bracket
SKU: 073154

Heavy corner anchor, additionally reinforced with side ribs. Equipped with a versatile (slotted) hole pattern. Ideally suited for anchoring heavy window frames.

Length 1

Length 2

Thickness

4 mm

5 mm

Slotted hole

Surface treatment

SV-2

ZM-4

Details & dimensions

Article

Article number073154

EAN code8714318077891

Packaging

EAN code8714318136369

Packaging20 per box

Length405 mm

Width225 mm

Height85 mm

Dimensions

XL-Prefab angle bracket

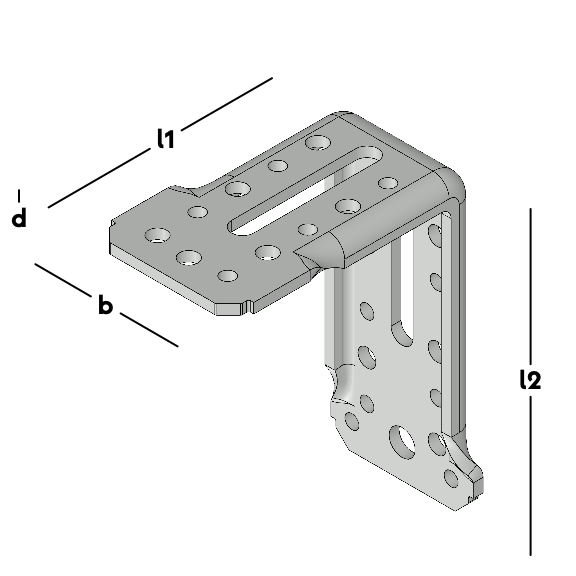

Length 1 (l1)125 mm

Length 2 (l2)150 mm

Width (b)72 mm

Thickness (d)5 mm

Slotted hole2/11x73 mm

Hole pattern12x7/11x9/1x13

MaterialSteel

Steel QualityS350

Surface treatment ZM-4

Downloads

Drawings and models in 2D and 3D

Certifications, quality marks and technical sheets

Technical Sheet

Processing & accessories

1 / 8

View our assembly instructions here that help you step by step to an end result.

Name	Article number	Packaging	Length 1	Length 2	Width	Thickness	Slotted hole	Hole pattern	Material	Steel Quality	Surface treatment
XL-Angle bracket	073100	20 per box	75 mm	100 mm	72 mm	5 mm	2/13x30 mm	8/7-6/9-1/13	Steel	S350	SV-2
XL-Angle bracket	073101	20 per box	75 mm	100 mm	72 mm	5 mm	2/13x30 mm	8/7-6/9-1/13	Steel	S350	ZM-4
XL-Angle bracket	073145	20 per box	75 mm	150 mm	72 mm	5 mm	12,5x30-12,5x110 mm	10/7-8/9	Steel	S350	SV-2
XL-Angle bracket	073166	20 per box	75 mm	150 mm	72 mm	4 mm	2/13x30 mm	10/7-8/9-2/13	Steel	S350	SV-2
XL-Angle bracket	073146	20 per box	75 mm	150 mm	72 mm	5 mm	13x111 mm	10/7-8/9	Steel	S350	ZM-4
XL-Angle bracket	073150	20 per box	75 mm	150 mm	72 mm	5 mm	2/13x30 mm	10/7-8/9-2/13	Steel	S350	SV-2
XL-Angle bracket	073151	20 per box	100 mm	150 mm	72 mm	5 mm	13x30-13x60 mm	11/7-9/9-2/13	Steel	S350	SV-2
XL-Angle bracket	073152	20 per box	125 mm	150 mm	72 mm	5 mm	2/13x30-13x60 mm	12/7-12/9-1/13	Steel	S350	SV-2
XL-Angle bracket	073153	20 per box	125 mm	150 mm	72 mm	5 mm	2/13x30-13x60 mm	12/7-12/9-1/13	Steel	S350	ZM-4
XL-Prefab angle bracket	073154	20 per box	125 mm	150 mm	72 mm	5 mm	2/11x73 mm	12x7/11x9/1x13	Steel	S350	ZM-4
XL-Angle bracket	073176	20 per box	125 mm	150 mm	72 mm	4 mm	2/13x30-13x60 mm	12/7-12/9-1/13	Steel	S350	SV-2
XL-Angle bracket	073160	20 per box	75 mm	150 mm	72 mm	5 mm	2/13x30 mm	10/7-8/9-2/13	Steel	S350	ZM-4
XL-Angle bracket	073165	20 per box	75 mm	100 mm	72 mm	4 mm	2/13x30 mm	8/7-6/9-1/13	Steel	S350	SV-2
XL-Angle bracket	073175	20 per box	100 mm	150 mm	72 mm	4 mm	13x30-13x60 mm	11/7-9/9-2/13	Steel	S350	SV-2
XL-Angle bracket	073200	20 per box	75 mm	200 mm	72 mm	5 mm	2/13x30 mm	12/7-10/9-3/13	Steel	S350	SV-2
XL-Angle bracket	073201	20 per box	75 mm	200 mm	72 mm	5 mm	2/13x30 mm	12/7-10/9-3/13	Steel	S350	ZM-4
XL-Angle bracket	073203	20 per box	75 mm	200 mm	72 mm	4 mm	2/13x30 mm	12/7-10/9-3/13	Steel	S350	SV-2
XL-Angle bracket	0732045	13 per box	150 mm	200 mm	72 mm	5 mm	2/13x60 mm	16/7-10/9-3/13	Steel	S350	ZM-4
XL-Angle bracket	0732047	15 per box	175 mm	175 mm	72 mm	5 mm	2/13x60 mm	16/7-10/9-2/13	Steel	S350	ZM-4
XL-Angle bracket	0732055	15 per box	100 mm	225 mm	72 mm	5 mm	2/13x30 mm	16/7-18/9-5/13	Steel	S350	ZM-4
XL-Angle bracket	073206	10 per box	200 mm	225 mm	72 mm	5 mm	4/13x30 mm	20/7-24/9-5/13	Steel	S350	ZM-4
XL-Angle bracket	0732065	10 per box	225 mm	250 mm	72 mm	5 mm	2/13x20-4/13x30 mm	18/7-14/9-4/13	Steel	S350	ZM-4
XL-Angle bracket	0732075	8 per box	125 mm	300 mm	72 mm	5 mm	3/13x30 mm	19/7-22/9-5/13	Steel	S350	ZM-4
XL-Angle bracket	073208	30 per box	50 mm	100 mm	72 mm	4 mm	13x30 mm	5/7-4/9	Steel	S350	SV-2
XL-Angle bracket	0732085	30 per box	50 mm	125 mm	72 mm	4 mm	13x30 mm	5/7-4/9-1/13	Steel	S350	SV-2
XL-Angle bracket	073195	20 per box	100 mm	150 mm	72 mm	5 mm	13x30-13x60 mm	11/7-9/9-2/13	Steel	S350	ZM-4
