Raised hook 60

Name: Raised hook 60
SKU: 499372

Pin Ø 16mm fitted with a Rustic-shaped backplate with screw holes. With extra distance between the pin and the plate for use in a situation with a recessed negge. For use in combination with a thumb handle.

Width

30 mm

38 mm

Height

150 mm

210 mm

Details & dimensions

Article

Article number499372

EAN code8714318065256

Packaging

EAN code8714318065263

Packaging10 per box

Length310 mm

Width260 mm

Height70 mm

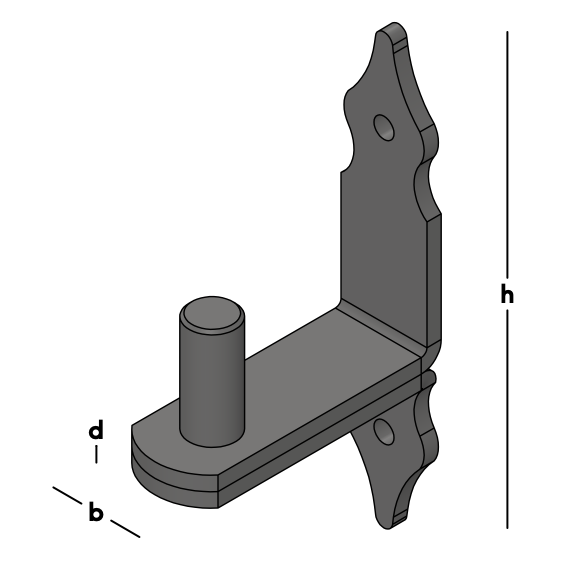

Dimensions

Raised hook 60

Width (b)30 mm

Thickness (d)5 mm

Height (h)150 mm

Hole pattern2/7

Backplate30x150 mm

Size pinionØ16x35

MaterialSteel

Steel QualityS315

Surface treatment EPZ-3

Downloads

Drawings and models in 2D and 3D

Processing & accessories

You can use the products below to place or confirm the product correctly.

Name	Article number	Packaging	Width	Thickness	Height	Hole pattern	Backplate	Size pinion	Material	Steel Quality	Surface treatment
Raised hook 60	499372	10 per box	30 mm	5 mm	150 mm	2/7	30x150 mm	Ø16x35	Steel	S315	EPZ-3
Raised hook 70	499375	10 per box	30 mm	5 mm	150 mm	2/7	30x150 mm	Ø16x35	Steel	S315	EPZ-3
Raised hook 35	499468	10 per box	38 mm	5 mm	210 mm	2/9	38x210 mm	Ø16x45	Steel	S315	EPZ-3
Raised hook 50	499470	10 per box	38 mm	5 mm	210 mm	2/9	38x210 mm	Ø16x45	Steel	S315	EPZ-3
